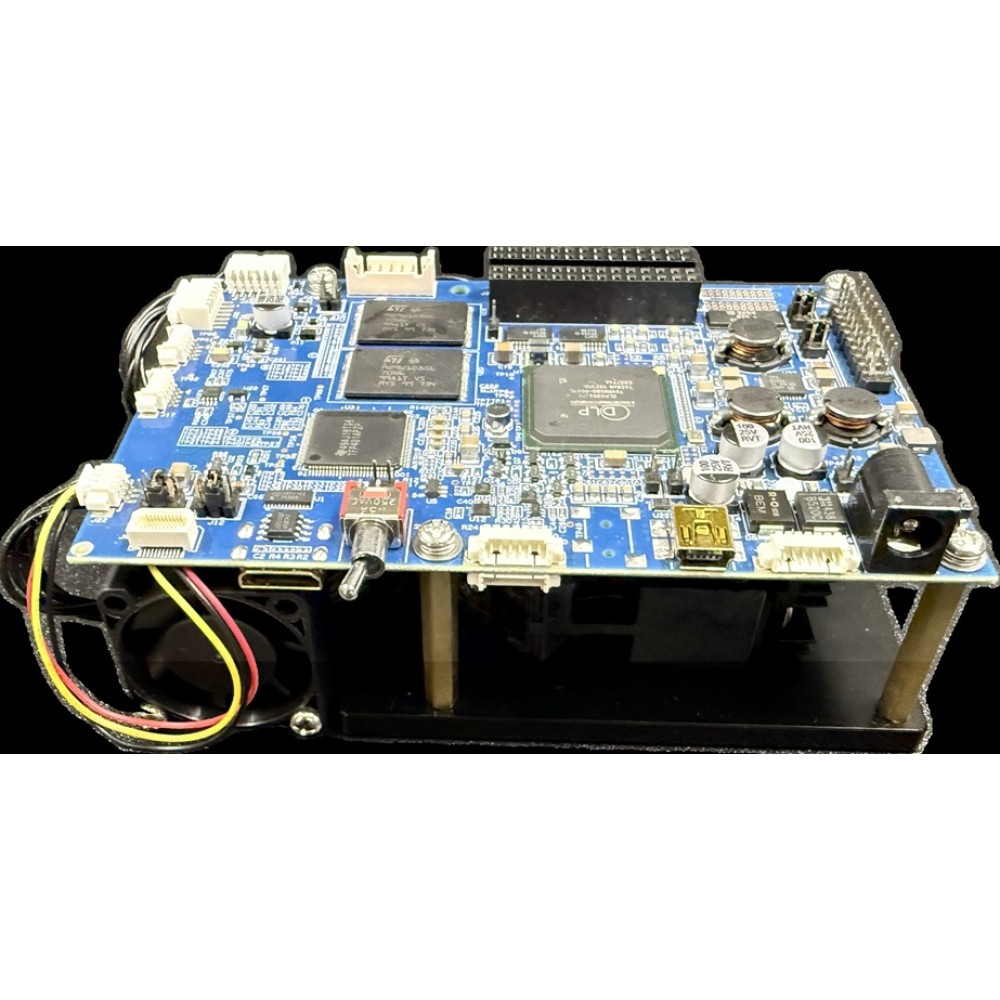

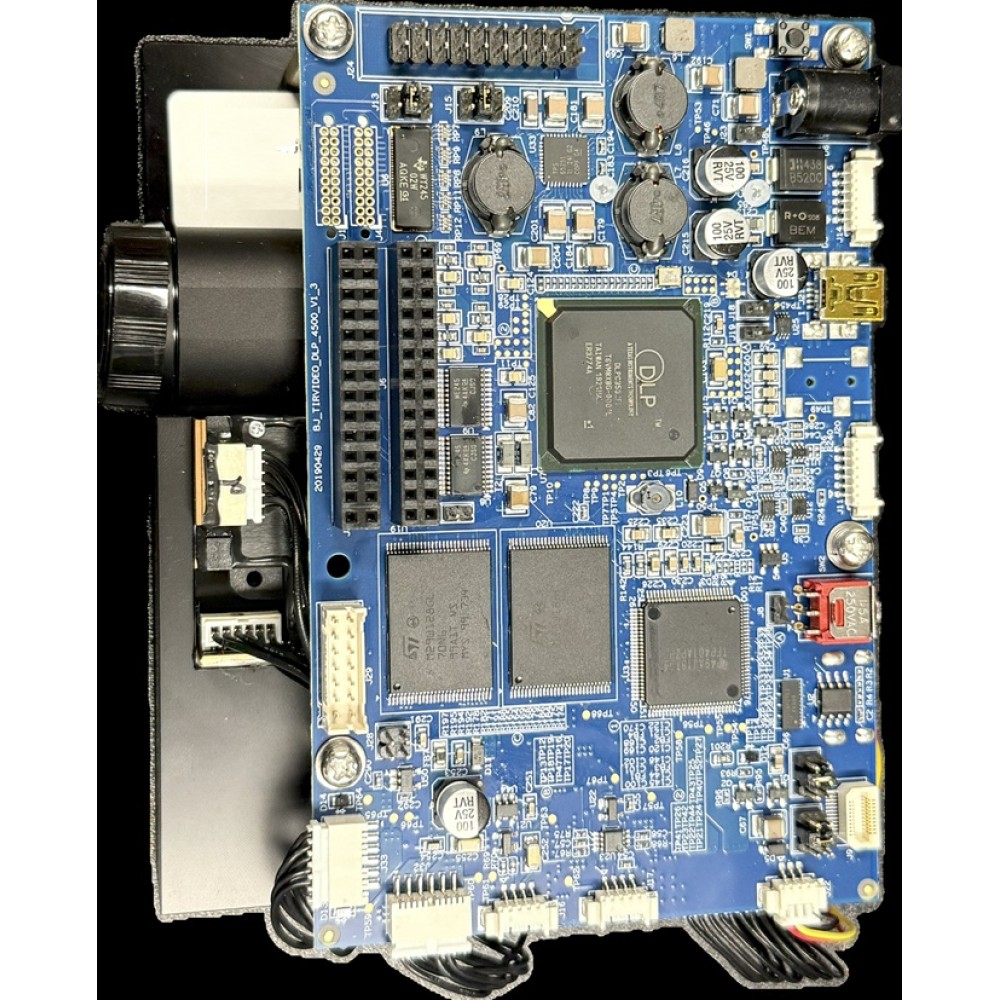

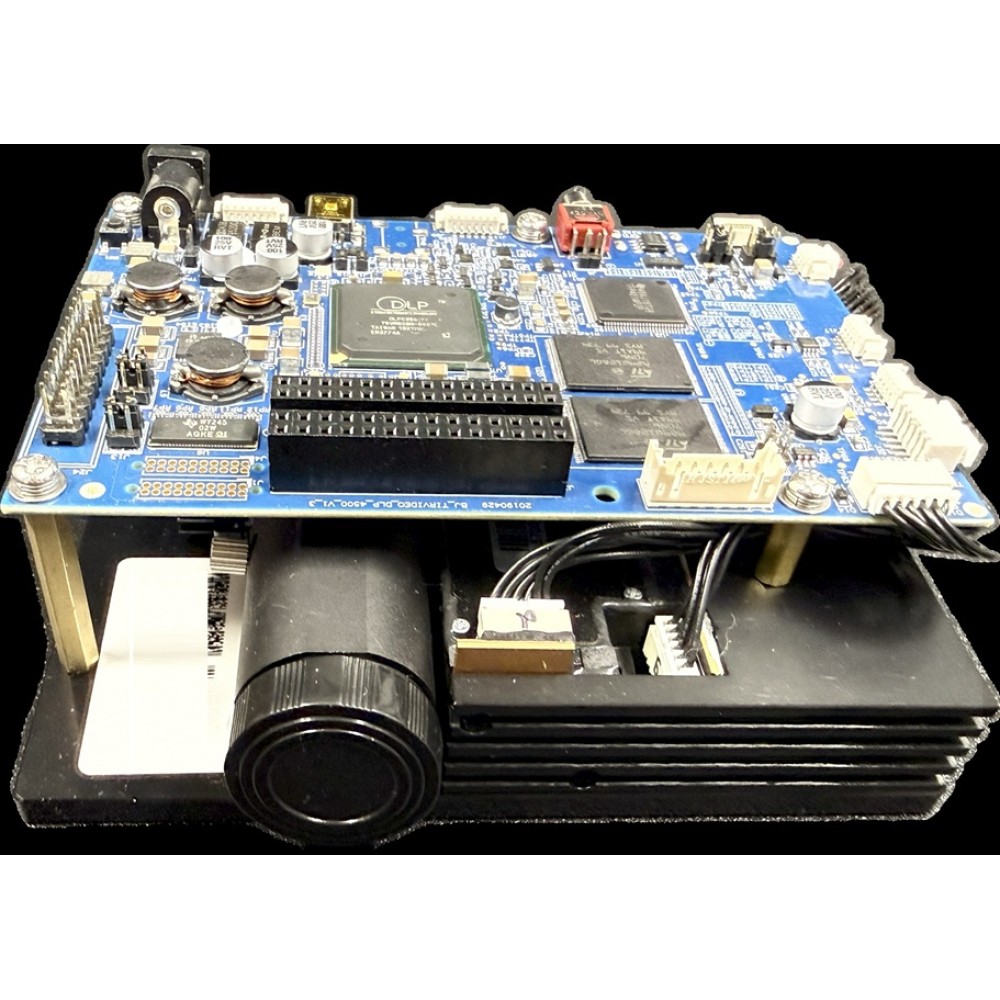

DLP LightCrafter 4500 EVM
-
$1,399.99
- Product Code: LCR4500-EVM
- Availability: In Stock
DLP Light Engine Development Platform (0.45” WXGA)
The DLP-based Light Engine Development Platform delivers a highly flexible and precise light projection solution designed for industrial, medical, and scientific applications. Built on a 0.45” WXGA DLP chipset, this platform combines high resolution, strong illumination performance, and advanced programmability in a compact, integration-ready form factor.
Engineered for developers and system integrators, the platform enables rapid development of structured light systems, machine vision solutions, and advanced optical instruments.
Powerful Pattern Control & System Integration
This development platform allows users to generate, store, and project high-speed pattern sequences with ease through a USB-based API and intuitive graphical interface.
With dual configurable trigger inputs/outputs, it supports precise synchronization with cameras, sensors, and external systems—making it ideal for applications requiring accurate timing and coordination.
Typical applications include:
- Industrial 3D machine vision and inspection
- Medical imaging systems
- Spectroscopy and optical measurement
- Research and scientific instrumentation
Platform Configuration
The development module includes:
- 0.45” WXGA DLP chipset
- Integrated RGB LED illumination system
- DMD controller board
Power supply and cables are available separately.
Key Features
- High-performance RGB LED illumination system
- Integrated LED driver with adjustable current control
- Simultaneous RGB operation capability
- Native high-speed pattern projection at 912 × 1140 resolution
- Binary pattern rates up to 4,000+ Hz
- Grayscale pattern rates up to 120 Hz (8-bit)
- Full WXGA image/video display (1280 × 800)
- Dual programmable I/O triggers for system synchronization
- Built-in flash memory for onboard pattern storage
- Multiple interface options: USB, HDMI, UART, FPD-Link
- Compact and robust design for easy system integration
DLP Light Engine Development Platform (0.45” WXGA)
The DLP-based Light Engine Development Platform delivers a highly flexible and precise light projection solution designed for industrial, medical, and scientific applications. Built on a 0.45” WXGA DLP chipset, this platform combines high resolution, strong illumination performance, and advanced programmability in a compact, integration-ready form factor.
Engineered for developers and system integrators, the platform enables rapid development of structured light systems, machine vision solutions, and advanced optical instruments.
Powerful Pattern Control & System Integration
This development platform allows users to generate, store, and project high-speed pattern sequences with ease through a USB-based API and intuitive graphical interface.
With dual configurable trigger inputs/outputs, it supports precise synchronization with cameras, sensors, and external systems—making it ideal for applications requiring accurate timing and coordination.
Typical applications include:
- Industrial 3D machine vision and inspection
- Medical imaging systems
- Spectroscopy and optical measurement
- Research and scientific instrumentation
Platform Configuration
The development module includes:
- 0.45” WXGA DLP chipset
- Integrated RGB LED illumination system
- DMD controller board
Power supply and cables are available separately.
Key Features
- High-performance RGB LED illumination system
- Integrated LED driver with adjustable current control
- Simultaneous RGB operation capability
- Native high-speed pattern projection at 912 × 1140 resolution
- Binary pattern rates up to 4,000+ Hz
- Grayscale pattern rates up to 120 Hz (8-bit)
- Full WXGA image/video display (1280 × 800)
- Dual programmable I/O triggers for system synchronization
- Built-in flash memory for onboard pattern storage
- Multiple interface options: USB, HDMI, UART, FPD-Link
- Compact and robust design for easy system integration
Developer-Friendly Ecosystem
The platform is supported by a comprehensive software and firmware package, enabling full control over projection behavior and system performance.
Detailed design documentation and development tools allow engineers to accelerate product development and quickly transition from prototype to production using DLP technology.
Why Choose This Platform
- Fast development cycle for optical systems
- Proven DLP technology for precision light control
- Flexible integration into custom applications
- Ideal foundation for next-generation 3D imaging and projection systems
Developer-Friendly Ecosystem
The platform is supported by a comprehensive software and firmware package, enabling full control over projection behavior and system performance.
Detailed design documentation and development tools allow engineers to accelerate product development and quickly transition from prototype to production using DLP technology.
Why Choose This Platform
- Fast development cycle for optical systems
- Proven DLP technology for precision light control
- Flexible integration into custom applications
- Ideal foundation for next-generation 3D imaging and projection systems
