LightCrafter 4500 - DLP® 0.45” Evaluation Module
-
$1,199.00
- Product Code: LCR4500
- Availability: In Stock
-
+

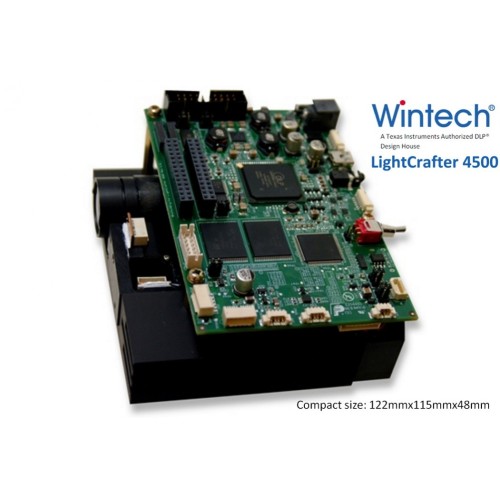

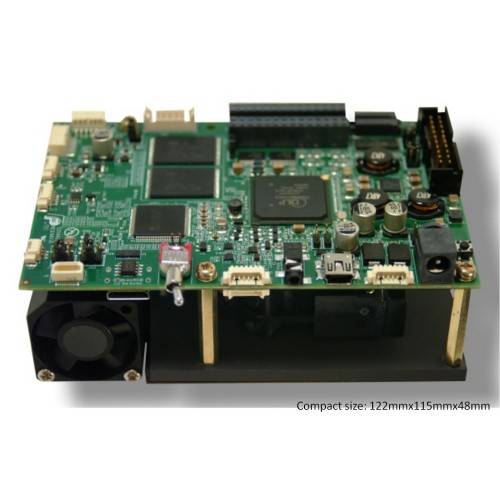

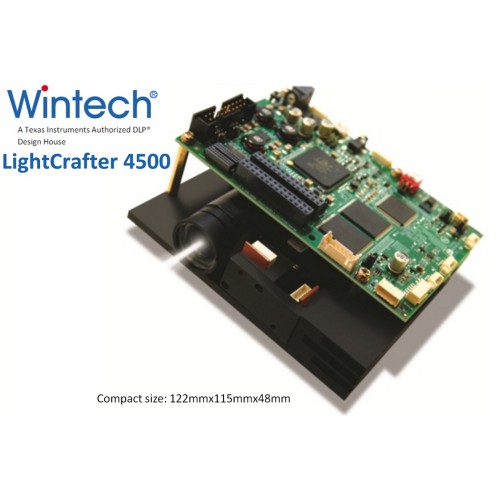

DLP® LightCrafter 4500 Evaluation Module
The DLP® LightCrafter 4500 is an evaluation module offered by Texas Instruments and manufactured by Wintech Digital. This research and development platform offers new users 150 lumens of optical brightness in a compact, affordable package.
The DLP® LightCrafter 4500 provides system evaluators with a fully contained light engine including:
- Optics
- Electronics
- DMD
- Thermal management
- QT Library based GUI
Key Specifications
Display Technology
- WXGA (912x1140) diamond pixel DMD
- 150 lumens brightness via RGB LEDs
- 100% offset optics
- Contrast ratio: 1000:1
Optical Performance
- Effective focal length: 14mm
- Image size: 33.3" @ 1m
- Projection distance: 0.5m to infinity
- Adjustable focus slider
Thermal Management
- Heat sinking
- Fan cooling
Advanced Features
Controller
- Texas Instruments DLPC350 controller
- High frame rates in streaming and static image display modes
Frame Rates
- 2,880Hz binary streaming frames per second
- 120Hz 8-bit grayscale streaming frames per second (via mini-HDMI)
- Predetermined patterns (32MB onboard memory):
- Up to 4,255Hz binary
- 120Hz 8-bit grayscale frames per second
Connectivity
- Mini-HDMI connection for video input
- USB connection for system control
- FPD Link for video input
- PWM outputs for simultaneous RGB LED operation
- PandaBoard interface for optional PandaBoard ES platform
- Two camera input and two camera output triggers
Availability
The LightCrafter 4500 is available for purchase through:
- Texas Instruments eStore
- Wintech Digital
- Various distributors
Complete documentation on the LightCrafter 4500 is available through www.TI.com.
